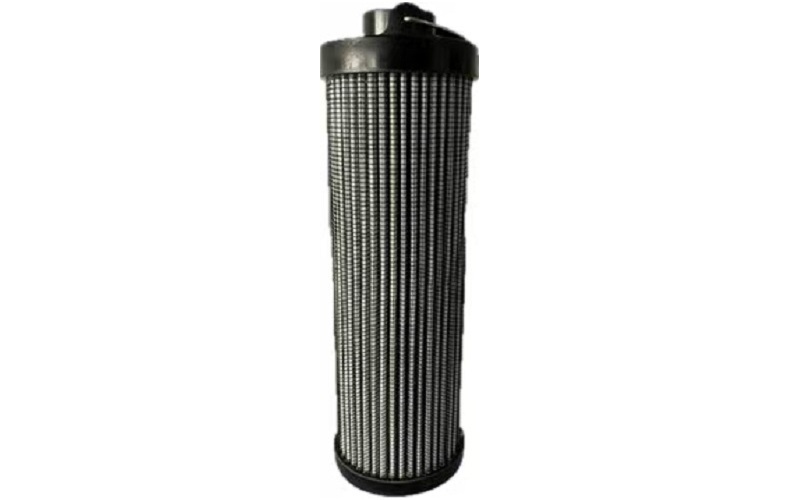

High-quality Coalescing Oil Filter Cartridge 0075R010BN4HC Oil Filter Element 10 micron
0075R010BN4HC is a coalescing filter element designed for high-pressure hydraulic systems, specifically engineered for efficient separation of free water and fine particulate contaminants from oil.
Typical Applications
1.Industrial Hydraulic Systems: Injection molding machines, machine tool hydraulic units, for water and particulate removal.
2.Lubrication Systems: Extends oil service life by preventing moisture-induced corrosion.
3. Mobile Equipment: Construction machinery, marine hydraulic systems.
Technical Features
1.Composite Media: Glass fiber + hydrophobic layer for combined particulate filtration and coalescence.
2.High-Pressure Design: Metal end caps and reinforced structure withstand pressure fluctuations.
3.Compatibility: Suitable for mineral oils, phosphate ester fluids (water-glycol requires validation).
technical specification
| Filtration Rating | 10 μm |
| Filter Media | Glass fiber (with metal end caps) |
| Max. Working Pressure | 25 bar (362 psi) |
| Operating Temperature: | -20°C to +80°C |
| Connection | M30×1.5 thread |
| Dimensions | OD: 75 mm |
| Length | 210 mm |
| Bypass Valve Pressure | Typically 1.5 bar |
| Seal Material | NBR nitrile rubber |
If you need more information,pls contact me by:
Email Address:sales@hi-filter.com
Tel/What's app:+86-13817437515
Related part number:
| 0160D010BN4HC | 0160R010BN3HC |
| 0160DN025BH4HC | 0160R010BN4HC |
| 0160MA010BN | 0180MA010BN0 |
