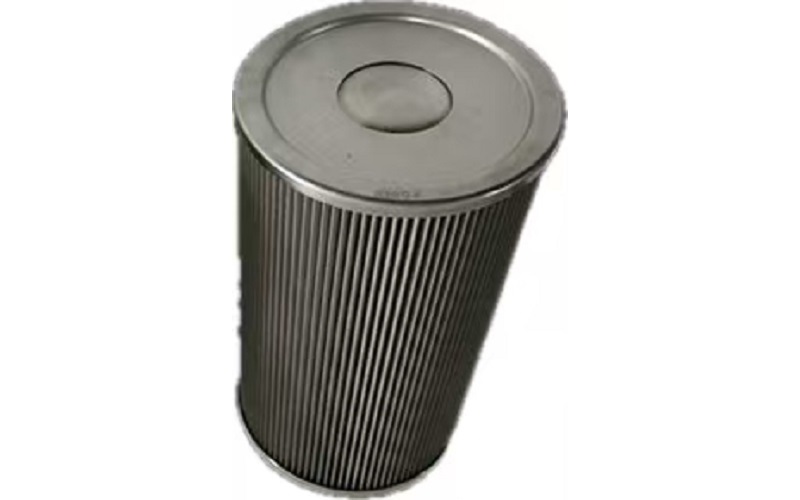

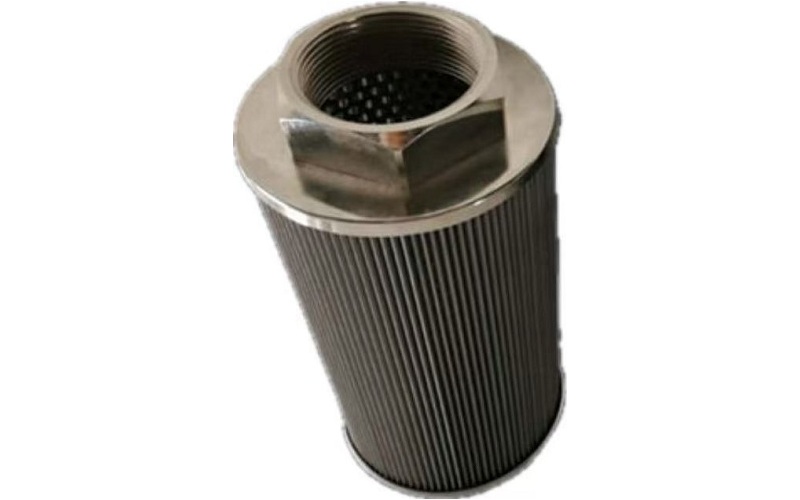

Highlandric Suction Oil Filter Element Durable Industrial Oil Filter Cartridge for Hydraulic Systems
Highlandric suction oil filter elements include the S Series, OF Series, TFX Series, and WU Series, manufactured using advanced technology to ensure high flow capacity and low resistance (initial pressure loss ≤ 0.01MPa). They are available with various connection options, such as threaded, flanged, or custom configurations. These high-quality, highly reliable filter elements are widely used in different hydraulic systems.
The Highlandric suction oil filter is an essential coarse filter in hydraulic systems, typically installed at the hydraulic pump inlet to protect the pump and extend its service life by preventing larger contaminants (such as metal particles or rubber debris from seals) from entering. To avoid cavitation in the hydraulic pump, pressure loss must be carefully considered, and the appropriate filtration rating should be selected. If required by operating conditions, the filter can be equipped with a bypass valve, which automatically opens when the filter becomes clogged or the pressure reaches 0.03MPa, preventing pump starvation and significantly reducing the risk of equipment damage.
Technical Specifications of Highlandric Suction Oil Filter Elements
Bore Size: 12mm ~ 65mm
Nominal Flow Rate: 16 ~ 400 L/min
Filtration Rating: 1 ~ 180 μm
Initial Pressure Loss: < 0.01MPa
Bypass Valve Opening Pressure: 0.03MPa (requires additional configuration)
Connection Types: Threaded or flanged
ISO9001
| Inner Diameter (mm) | Outer Diameter (mm) | Height (mm) |
| M33*2 | 71 | 100.5 |
| M42*2 | 71.5 | 153.5 |
| M48*2 | 83 | 201 |
| M48*2 | 81 | 196 |
| 52.2 | 110 | 118 |
| 80 | 118 | 300.5 |
