Replacement Hydraulic Filter Element HC8314FKZ39H 5μm Industrial Filter Elements OEM

  HC8314FKZ39H Series Hydraulic Lubrication Oil Filter Element

1. Overview

The HC8314FKZ39H is a high-performance foldable filter element designed as a 100% direct replacement for the original PALL filter. Adopting high-efficiency imported glass fiber filter media and stainless steel inner & outer protective screens, this 5μm filter features low pressure drop, large dirt holding capacity and excellent durability. It is specially engineered for high-pressure hydraulic systems, EH oil circuits and lubrication systems in heavy industrial scenarios.

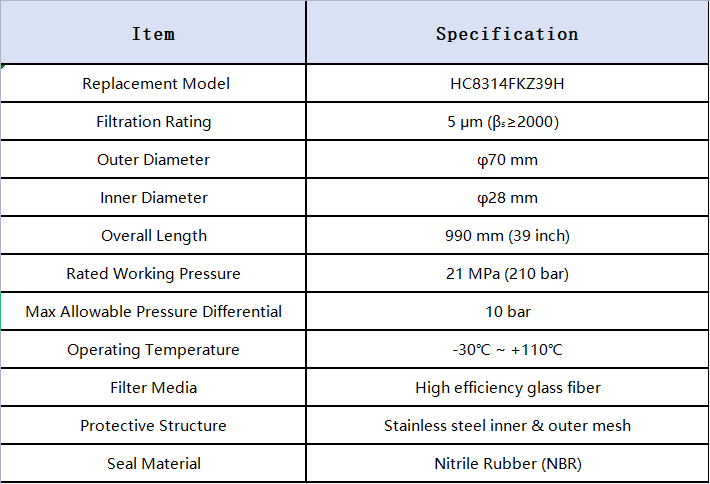

2. Technical Parameters

3. Compatible Media

1. Mineral hydraulic oil

2. Phosphate ester fire-resistant fluid (EH oil)

3. Water-glycol solution

4. Industrial lubricating oil

4. Main Features

Standard 39-inch structure, fully interchangeable with original PALL HC8314FKZ39H, no modification required.

Premium glass fiber media ensures stable filtration accuracy and long service life.

Anti-static design, safe for fire-resistant EH oil systems in power plants.

Low flow resistance, effectively reduce system energy consumption.

5. Application Fields

Power Industry: Thermal power & nuclear power plant EH control oil system, turbine lubrication system, sealing oil station.

Metallurgy Industry: Hydraulic stations of hot rolling mills, cold rolling mills and continuous casting machines.

General Industry: High-pressure hydraulic units, industrial oil purifiers and heavy machinery lubrication systems.
