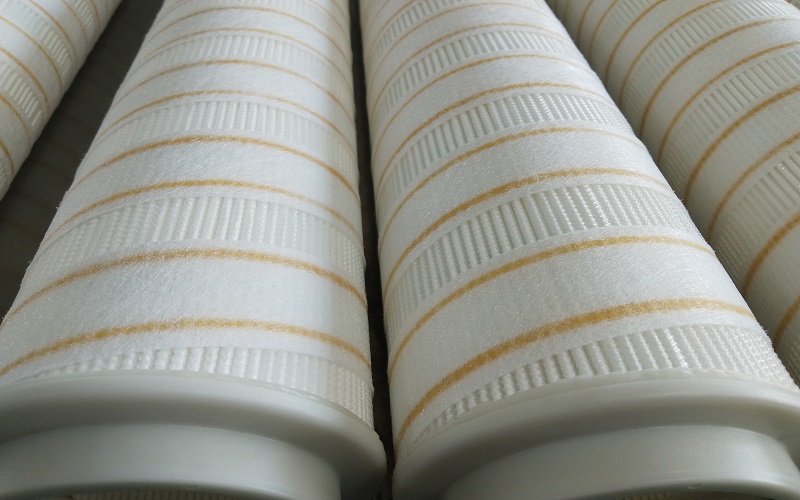

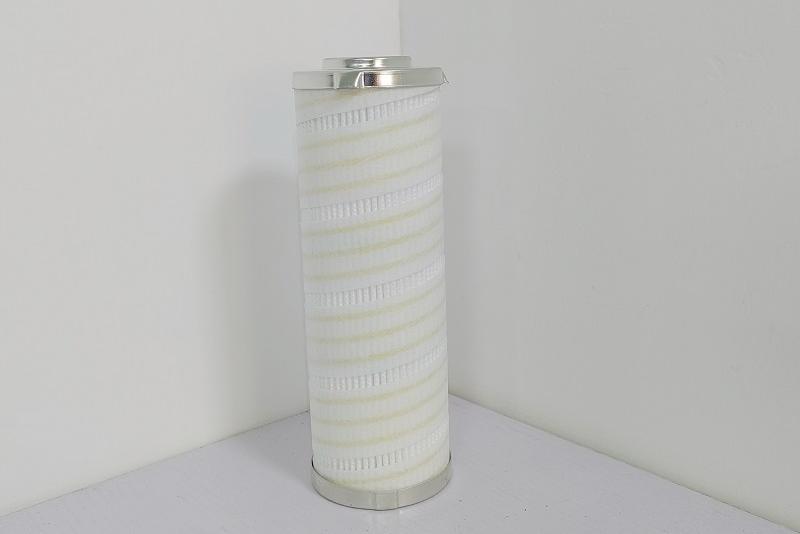

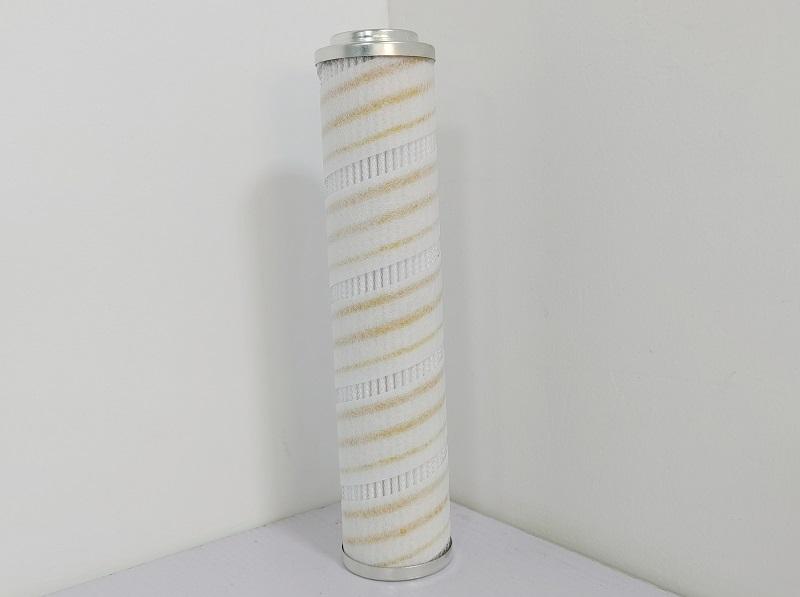

High-quality Replacement Filter Element HC8314FCP39Z Hydraulic Oil Filter Element
The HC8314FCP39Z filter element is a replacement filter, designed to remove contaminants from hydraulic oil to protect components within hydraulic systems from damage and ensure the reliability of system operation. Our version of this product closely matches the efficiency of the original filter, offering high-efficiency filtration capabilities that can capture fine particles and contaminants to maintain the cleanliness of the hydraulic oil. It is designed to be durable and has a long service life, capable of operating for extended periods under various working conditions and reducing the frequency of replacement.
Key Features:
High-efficiency removal of particulate contaminants
Protects precision hydraulic components (pumps, valves, actuators)
Extends hydraulic oil service life and reduces maintenance costs
Technical Specifications
| Parameter | Value |
|---|---|
| Filtration Rating | 5μm/βₓ(c)≥200 |
| Initial Pressure Drop | ≤0.15MPa @ 20℃, ISO VG 46 oil |
| Max. Operating Pressure | 1.6MPa (232psi) |
| Temperature Range | -20℃ to +100℃ (short-term peak 120℃) |
| Filter Media | Composite glass fiber + stainless steel support mesh |
| End Cap Material | Zinc-plated stamped steel |
| Seal Material | Nitrile Rubber (NBR) |
| Connection Type | Threaded (Metric M36x1.5) |
| Weight | 0.68kg (dry) |
Highlandric povide high pressure oil filter element replacement，If you need more information,pls contact me by:
Email Address:sales@hi-filter.com
Tel/What's app:+86-13817437515
Replacement Part Number:
| HC8314FCZ39H | HC8314FCZ39Z |
| HC8314FCP39H | HC8314FCP39Z |
| HC8314FCN39H | HC8314FCN39Z |
| HC8314FCS39H | HC8314FCS39Z |
| HC8314FCT39H | HC8314FCT39Z |
